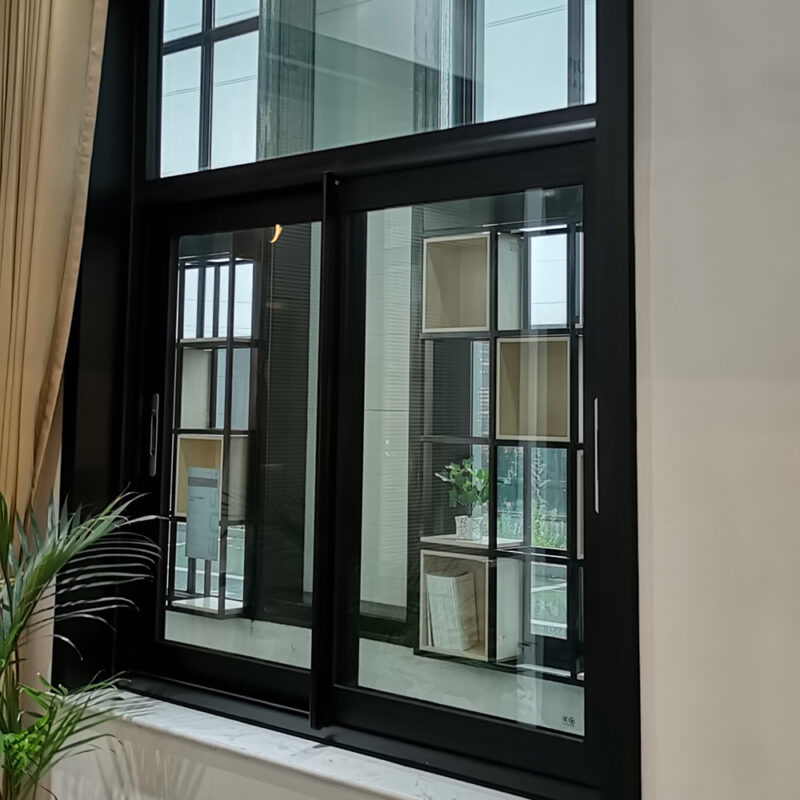

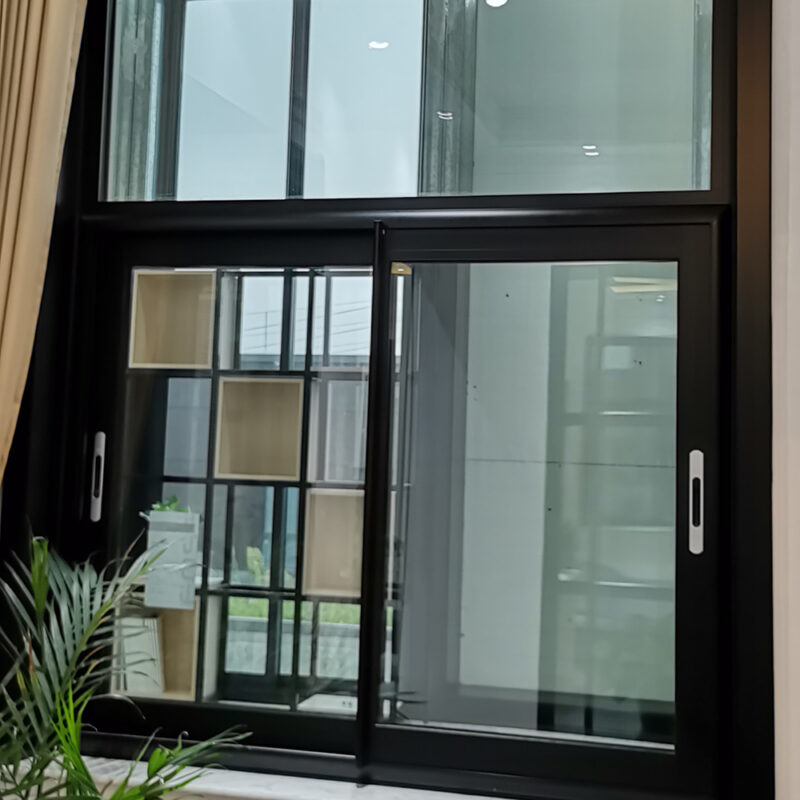

Aluminum Sliding Window Description
ES86 aluminum sliding door consists of 3 glass panels. The upper window glass is fixed and can not open. Another glass can slide to open the window. It is easy to open and close the slider window. If you have children, installing slider windows is a good option because you don’t need to worry about your children bumping against the window.

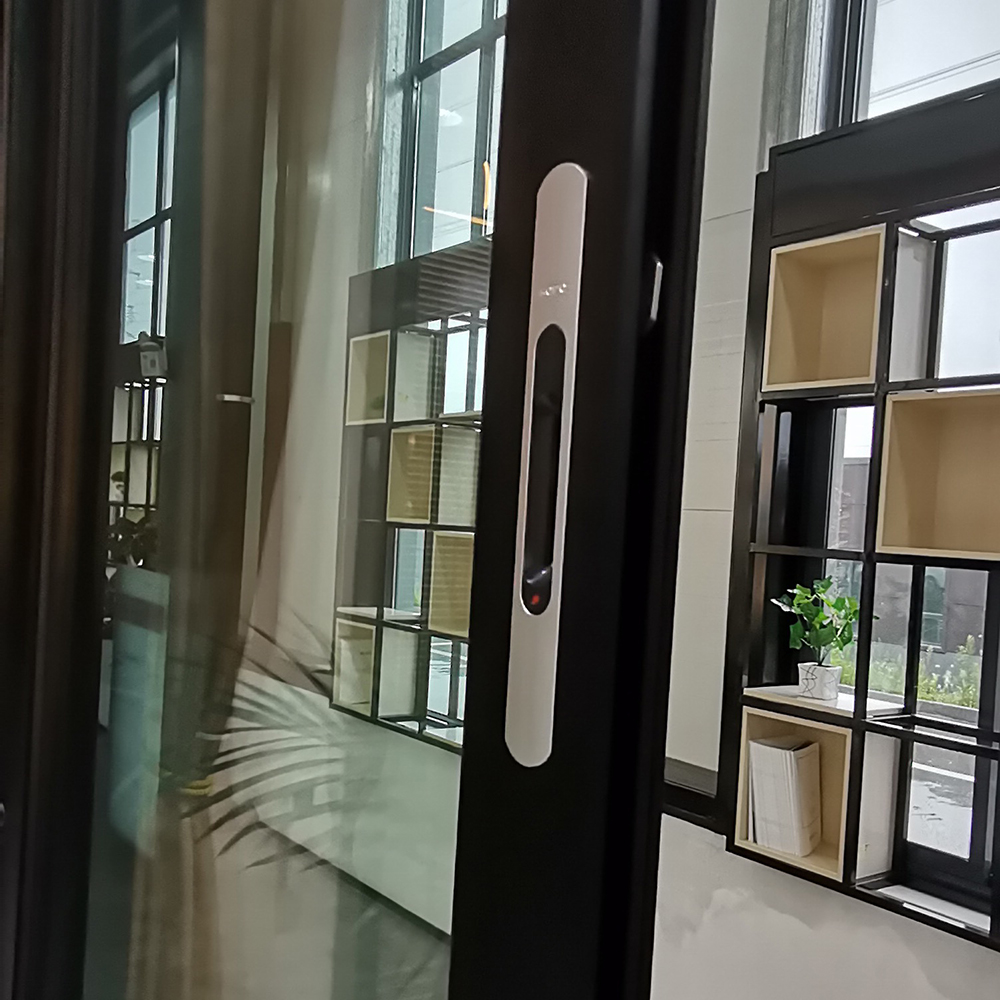

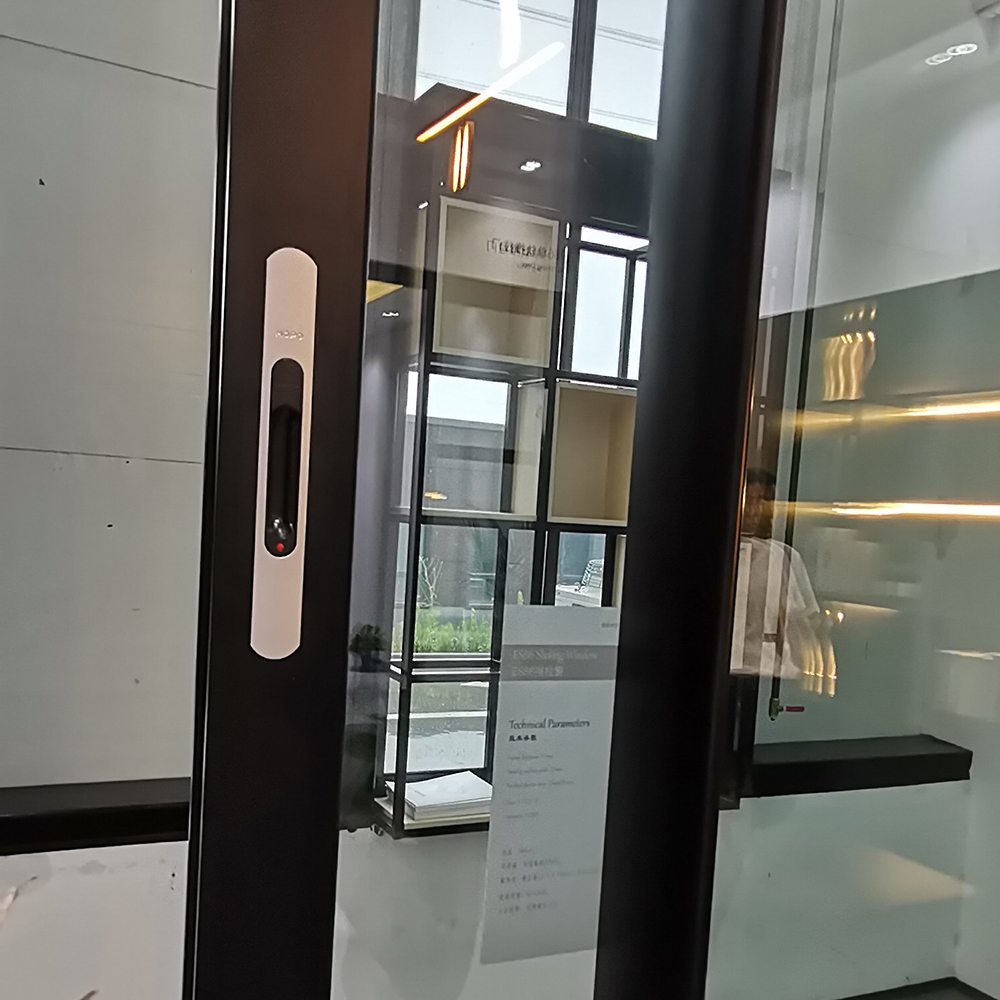

Aluminum Window Hardware
Excellent window handle. It is designed with people’s window opening habits in mind, making the sliding window simple to open and close.
Color&Size
We use five processes powder coating, PVDF coating, wood grain, anodized, and electrophoresis to color aluminum window frames. Custom colors and sizes are also available.
Features
- Design of a narrow window frame with slim lines.
- Patented die-cast corner code link.
- Better performance with EPDM rubber strip sealing.
- Good watertight effect due to unique drainage design.
- Good thermal insulation performance.
Application Ranges Of ES86 Aluminum Sliding Window
- Shopping malls
- Villas
- Office buildings

Airtight Performance
Level 8
q1=0.32 m³ / (m.h)
q2=1.09 m³/ ( ㎡.h )

Wind Pressure resistance
Level 9
p3=5.0 Kpa

Watertight Performance
Level 3
△P=267 pa

Insulation Performance
Level 5
K=2.6W/(㎡.K)
