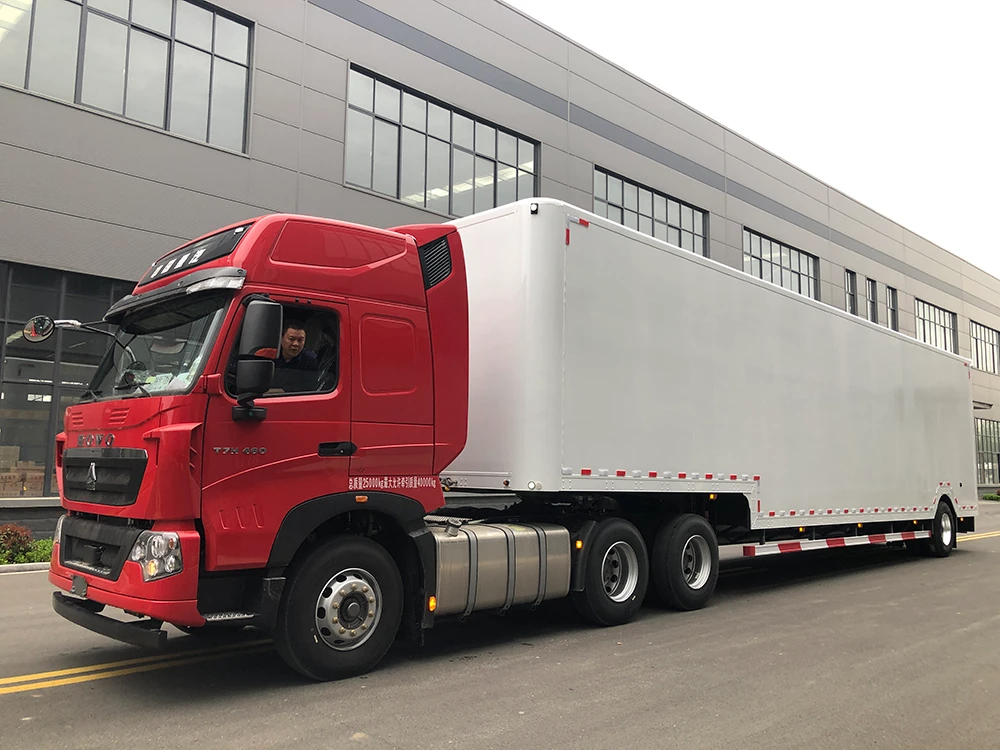

Aluminum Semi-trailer Parameters
| The Main Technical Parameters | ||
| Outside Length | Outside Width | Outside Height |
| 13750 | 2550 | 4000 |
| Inside Length | Inside Width | Inside Height |
| 13700 | 2500 | 2630 |
| Thickness of Side Panels | Thickness of Door Panel | Bottom Plate |
| 20 | 25 | Aluminum Base |

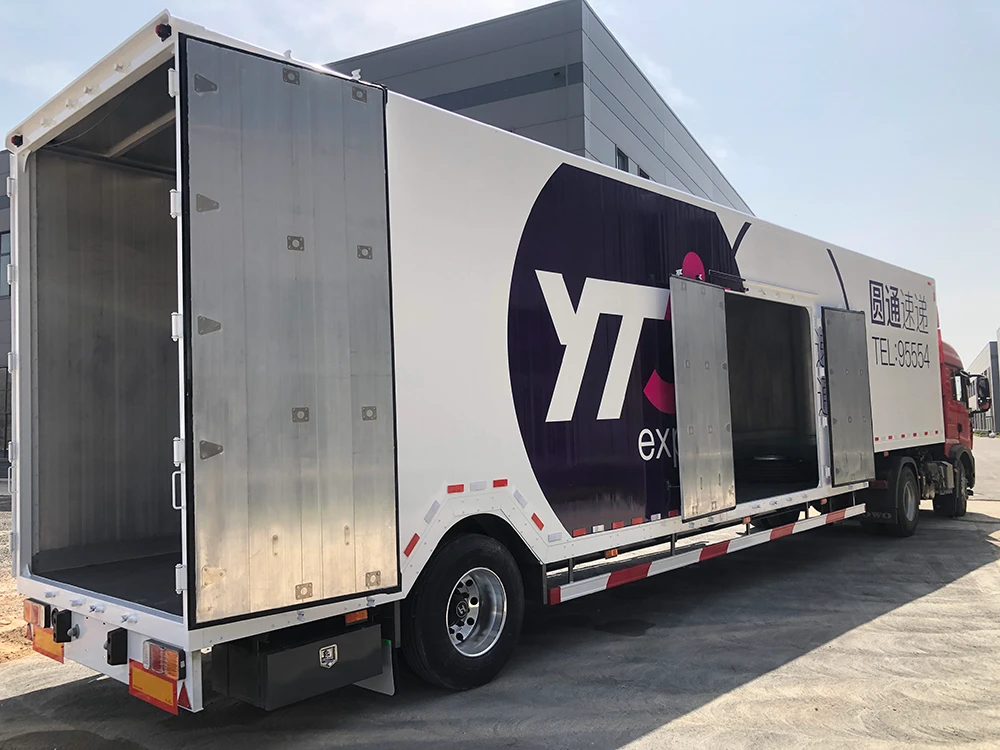

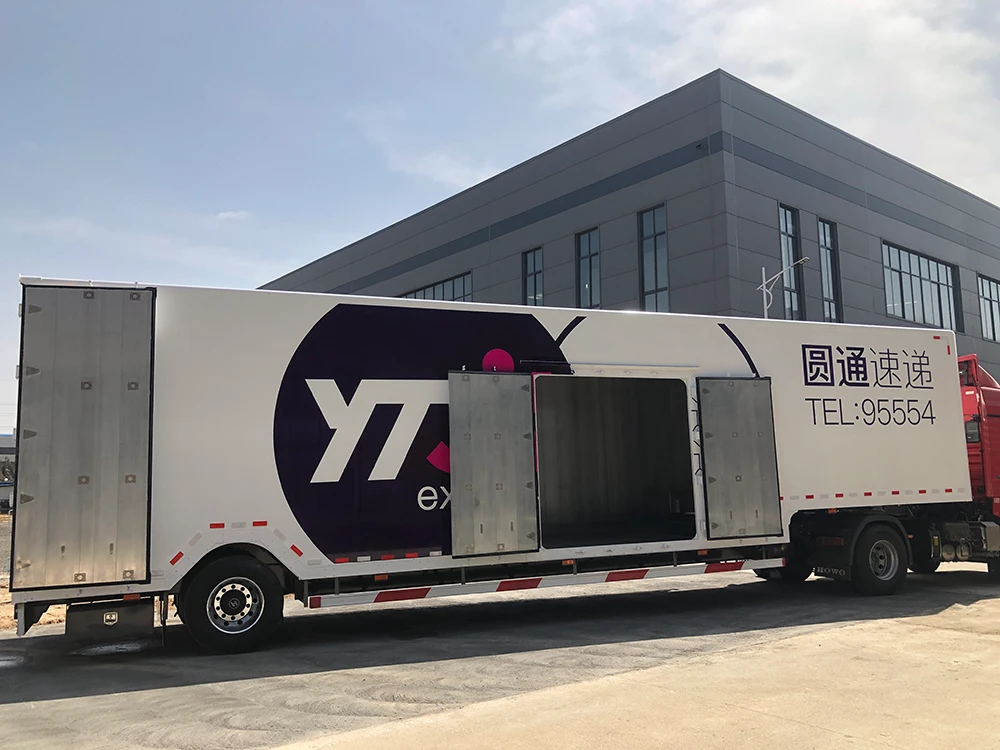

| Side Door | Back Door | Locks |
| Side Double Doors | Double Doors | 90 |
| Suspension | Axle/number of axles | Tire |
| BPW Air Suspension | BPW 10 tons / 2axles | 425/65R22.5 |
| Wheel | Outrigger | Emergency Relay Valve |
| 13.00*22.5 Made by Aluminum | 17″linkage | Wabco |
| Towing Pin | ABS | Handshake Valve |
| 50# | Domestic 4S/2M | Wabco |
| Weight/kg | 4900 | |

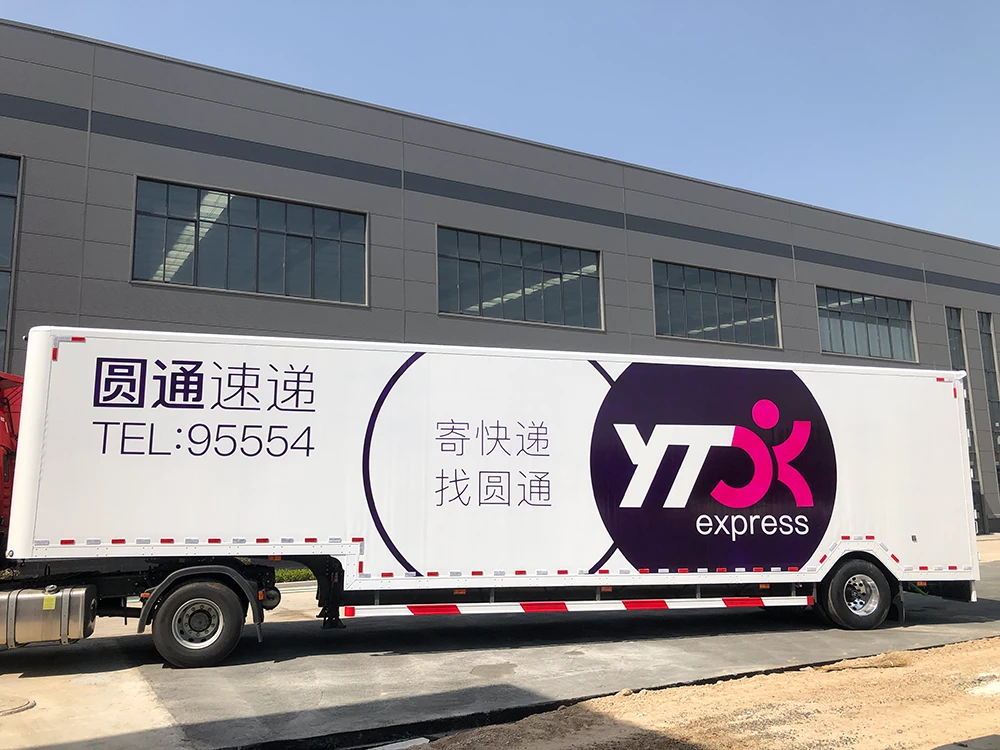

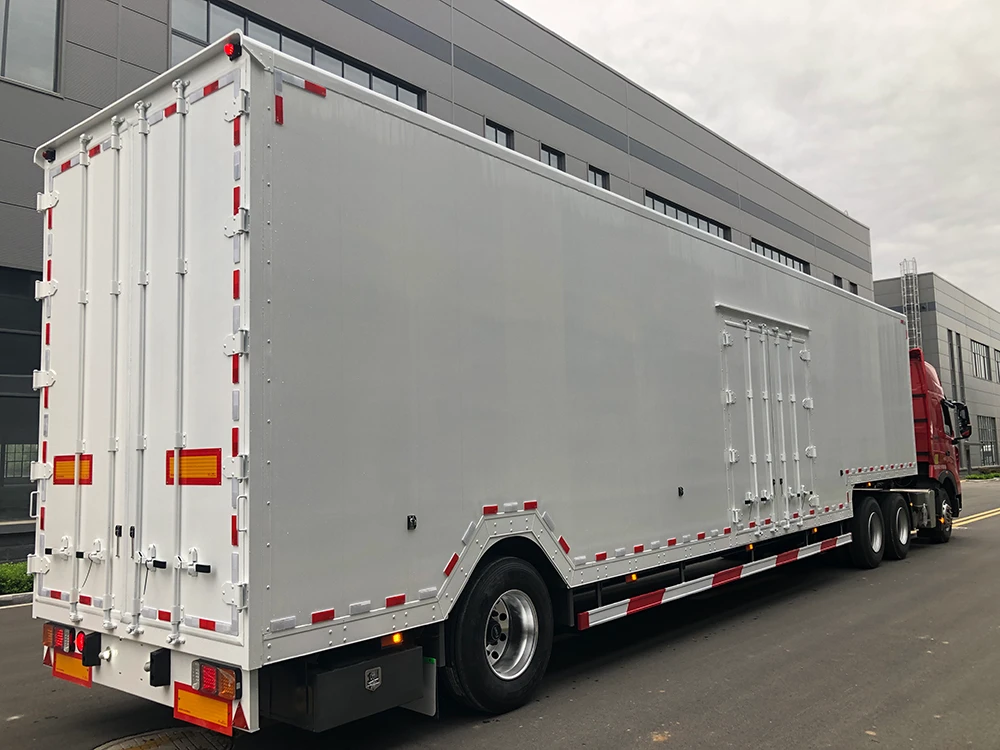

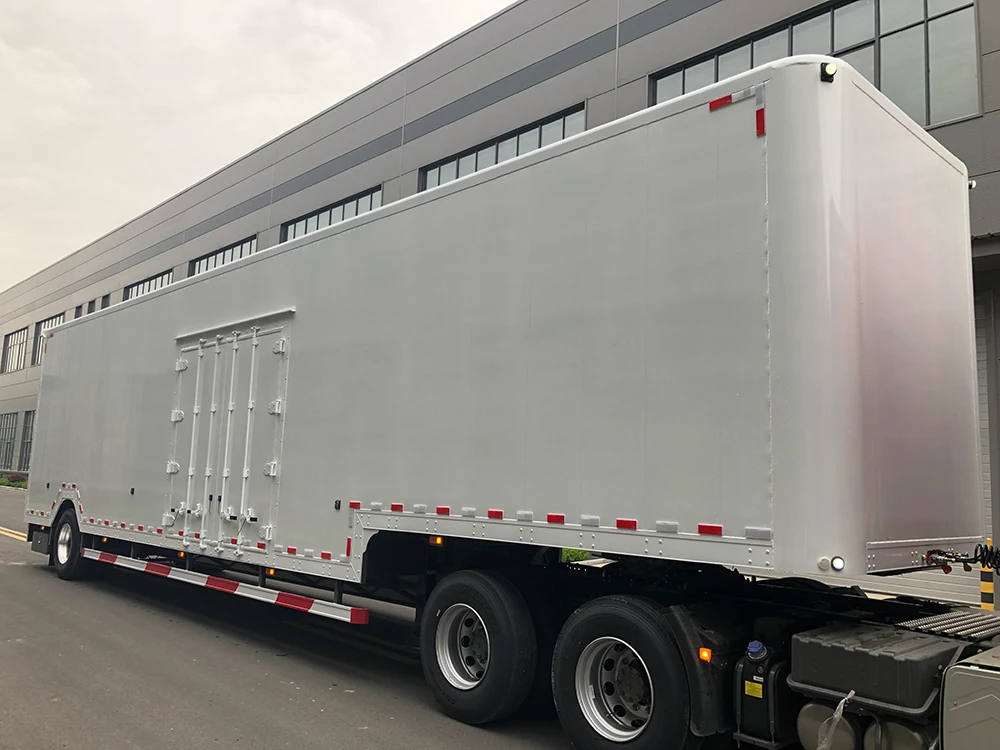

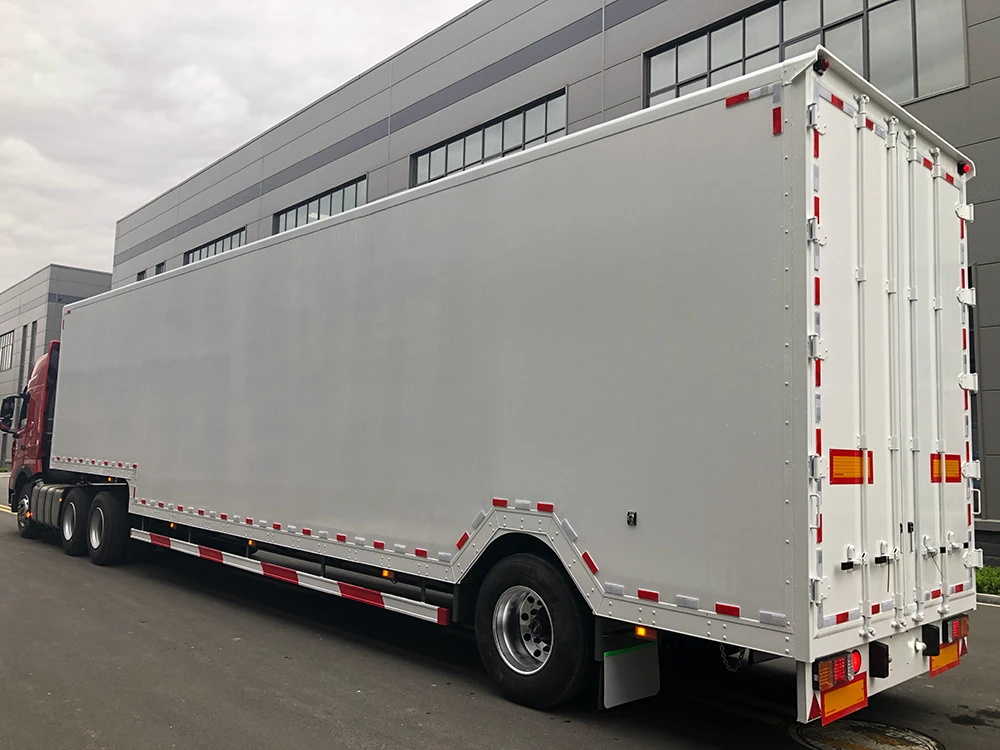

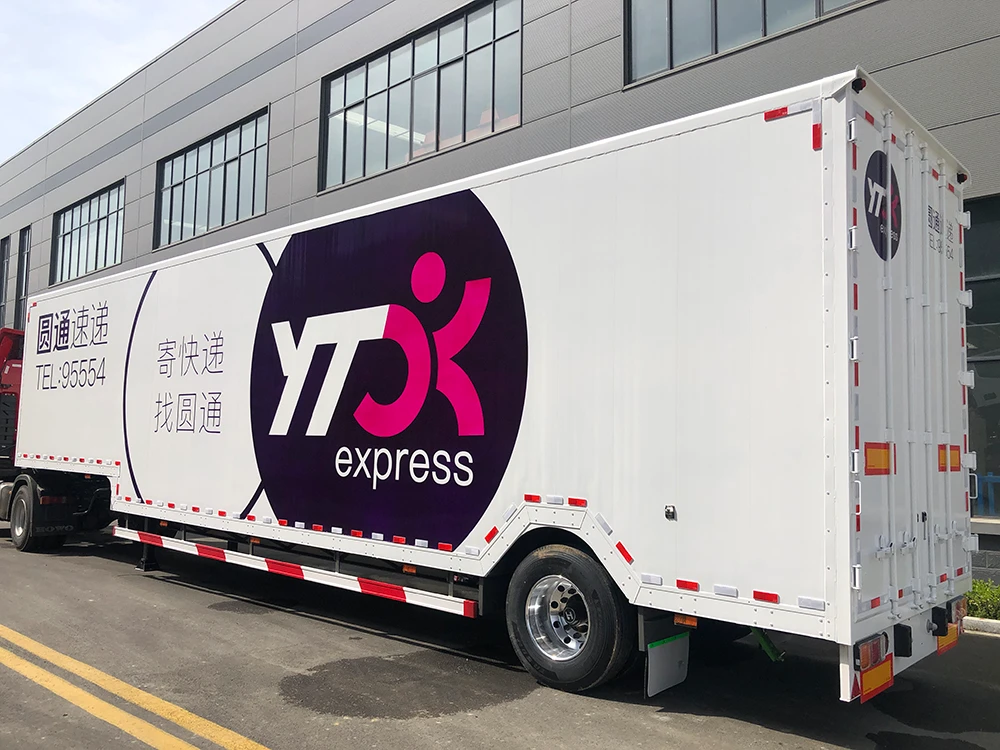

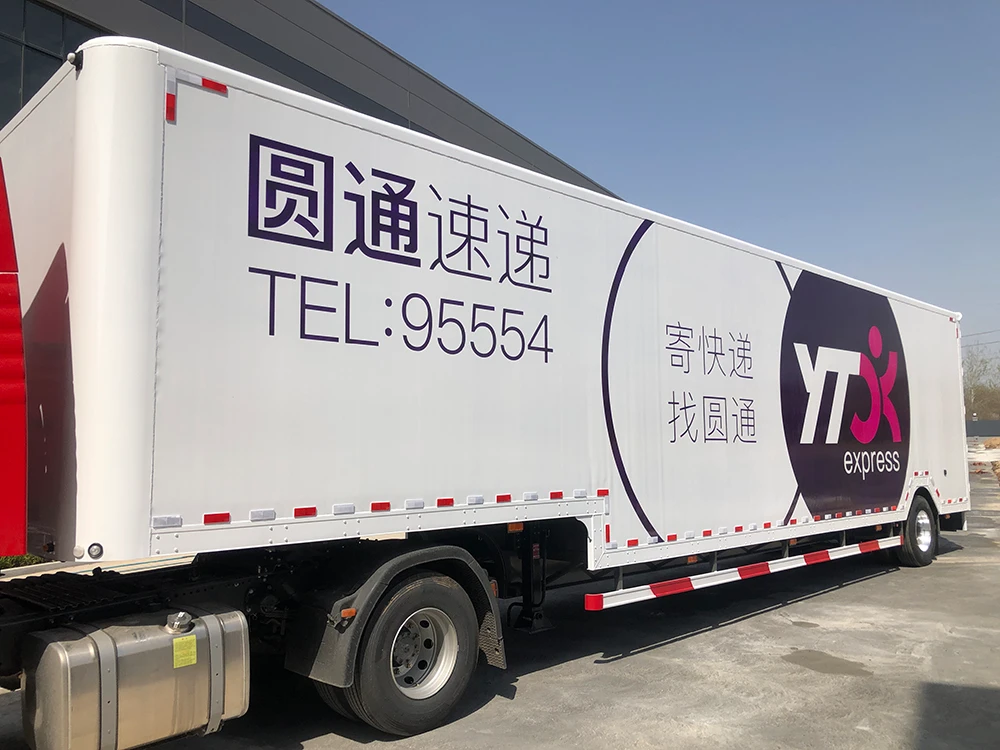

Aluminum Semi Trailers Description
Our company mainly produces all kinds of aluminum alloy carriages. The surface of the carriages can be made in various colors, and we can customize the size of the carriages according to customer needs.
We have a professional R&D team, and we can develop the products you need according to your needs.
Features
1. The car body is made of high-strength aluminum profiles, mainly connected by welding and screwing;
2. The front column adopts a large arc structure to reduce wind resistance and fully meet the requirements of GB1589;
3. The rubber strip adopts a built-in structure, which is more beautiful, has a longer service life, and more reliable sealing;

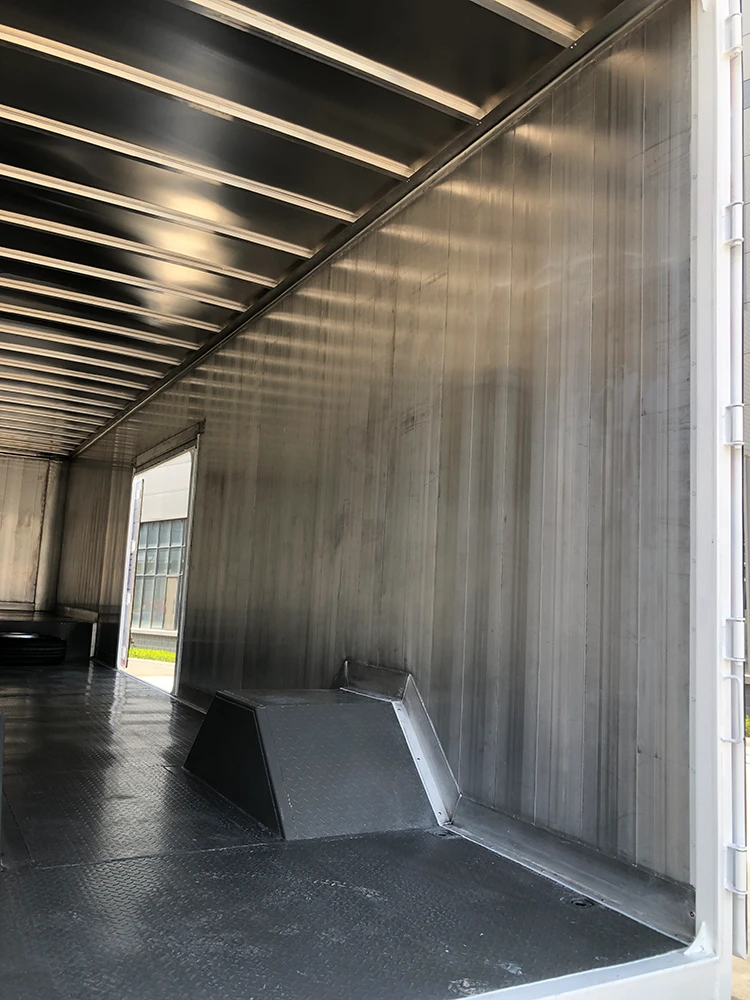

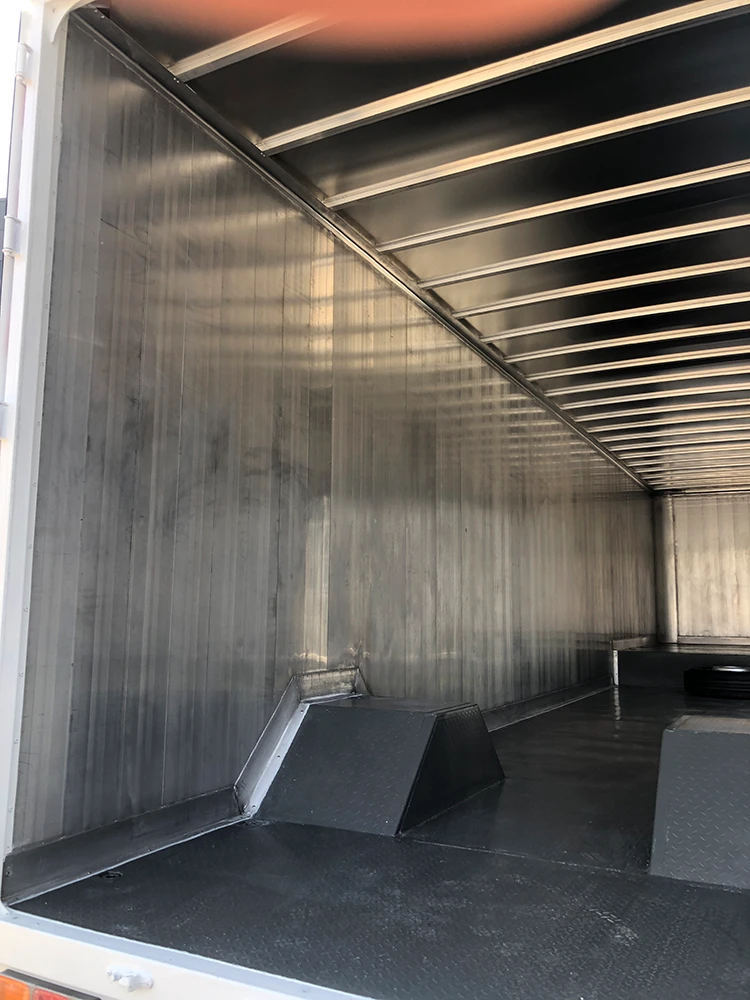

4. The bottom plate is a hollow profile structure with high strength, which can meet forklifts’ loading and unloading operations.

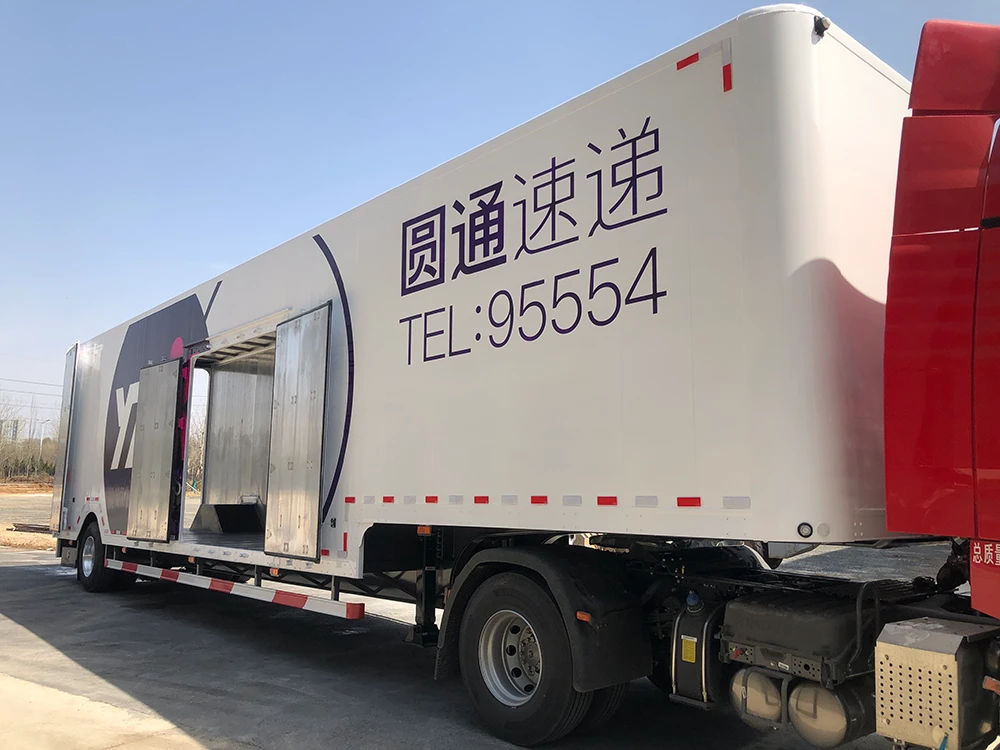

5. Side protection can be equipped with a skirt board/guardrail structure.
6. The semi-trailer aluminum side panels are strong and open easily.
